YB3 flameproof three-phase asynchronous motor
    Publish time 2022-01-20 16:12

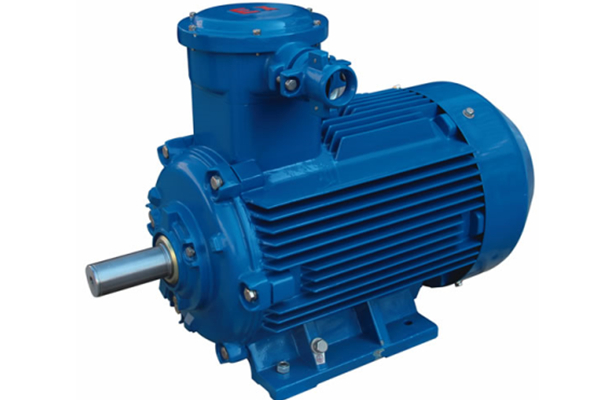

YB3 flameproof three-phase asynchronous motor

Product name: YBX3 series flameproof three-phase asynchronous motor

The main parameters: the power range: 0.18 ~ 315 kw; Stand no. : 80-355; Voltage: 380 v, 660 v, 380 v / 660 v; Frequency: 50 hz; Cooling: IC411; Protection grade: IP55. Insulation class: the insulation class 155 (F); Temperature: 15 ° C to + 40 ° C; Altitude: not more than 1000 meters above sea level.


Product information: YBX3 series flameproof high efficiency three-phase asynchronous motor in accordance with GB18613-2012 "the small and medium sized three-phase asynchronous motor limited value of energy efficiency and energy efficiency grade specified in the standard of secondary efficiency, motor made in accordance with the provisions of GB3836.2 flameproof, the explosion-proof marks for Exd Ⅱ BT4Gb and Exd Ⅱ CT4Gb. Suitable for group II class A and class B T1 ~ T4 explosive mixture of flammable gas or vapor and air form in place, the equipment used as general power equipment.
